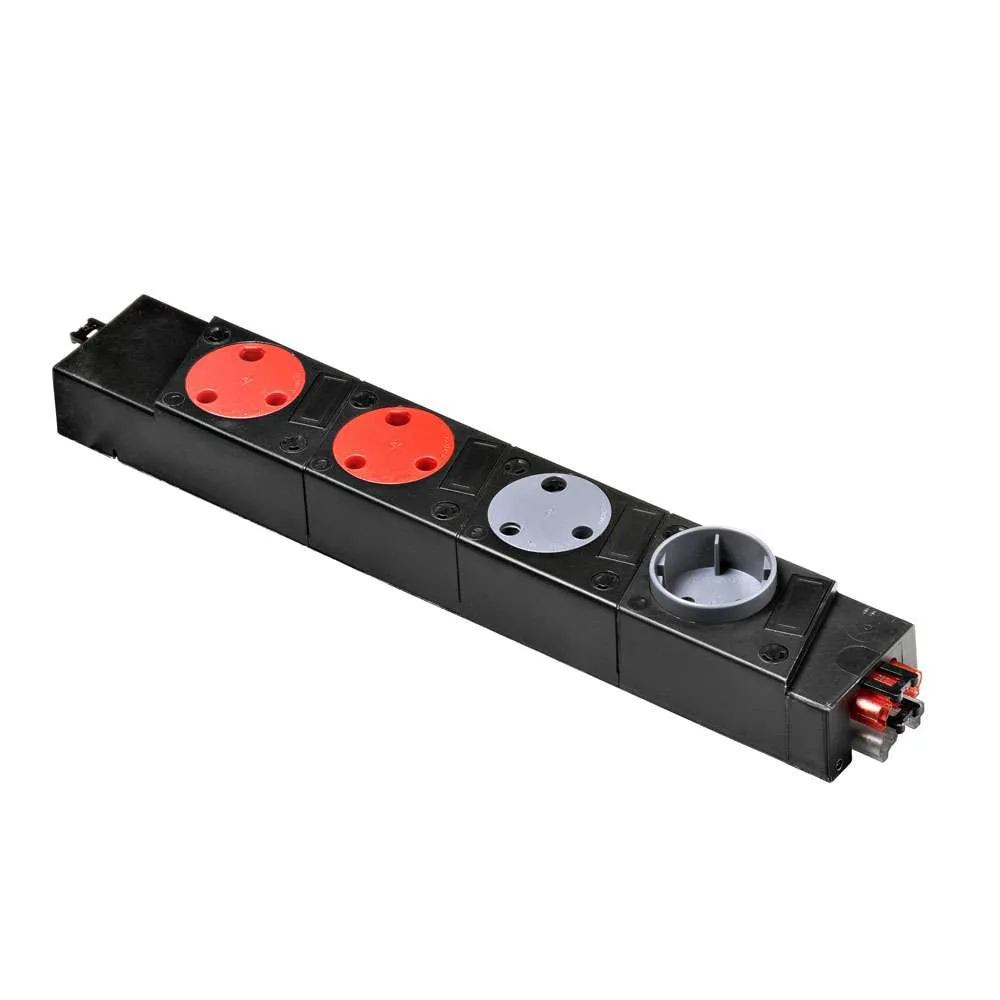

Oblique Power Base

In stock

The Oblique range is modular electrical power outlet system available in 2, 3, or 4 outlet configurations and manufactured from tough, high grade engineering plastic materials. All versions can be supplied in a variety of switching options (non switched, master-switched, individually switched) as well as fusing options (non fused, individually-fused).

Description:

Oblique 4 Way Dual
2 x SAD
1 x SAN
1 x 2Pin

Features & Benefits:

This product has revolutionised the modular office power system by allowing:

  • Direct adjacent units without the need for interconnecting leads
  • Up to 30 different international sockets types
  • The selection of 23 different angles of orientation for each socket
  • Dual power (2 circuits in one unit)
  • Numerous mounting options – under desks and in screens
  • SABS approved
  • Wieland connectors

Electrical Specifications:

Operating voltage:
220V – 250V AC @ 50 Hz
110V – 125V AC @ 60 Hz
Current: 15A

Max power:
1800W @ 110V – 125V AC
3000W @ 220V – 250V AC

Local electrical regulations determine the final electrical rating of the system. For higher current ratings, please consult your distributor directly.

Dimensions:

2 Way: 204mmL x 55mmW x 36.5mmH
3 Way: 273mmL x 55mmW 36.5mmH
4 Way: 342mmL x 55mmW 36.5mmH

Share this items :

Additional Range Pieces

macphersons_office_furniture_power_reticulation_oblique_2_way_dual

Description:

1 x SAD
1 x SAN

macphersons_office_furniture_power_reticulation_oblique_3way_dual

Description:

1 x SAD
1 x SAN
1 x 2Pin
